Mini Type
( Pitch:5.08mm (생산 일시중지) )
|
BI-508GL(생산 일시중지)
(생산일시중지)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
■ SPECIFICATIONS
|
|
|
Component part
|
Material
|
Standard
|
Plated
|
Remark
|
|
Base
|
Nylon-66
|
UL94V-0
|
|
Green
|
|
Terminal
|
Brass
|
1/2H
|
TIN
|
0.8t
|
|
Body terminal
|
Brass
|
H
|
TIN
|
0.7t
|
|
Screw
|
Steel
|
|
Nickel
|
M2.6
|
|
|
|
|
Current rating
|
250V 6Amp
|
|
Insulation resistance
|
500M Ohms of More at DC500V
|
|
Withstand voltage
|
AC 1000V / Minute
|
|
Wire range
|
AWG #18 ~ #26
|
|
Torque
|
4.0lb-in
|
|
|
|
|
|
|
|
|
|

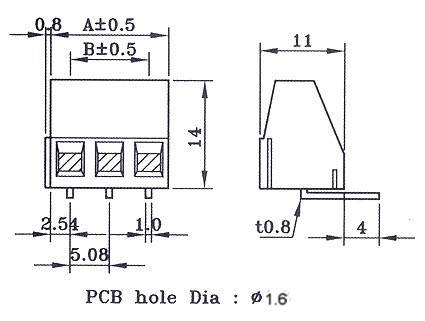

■ DIMENSION
|
|
P | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | ~ | |
A±0.5 | 10.16 | 15.24 | 20.32 | 25.40 | 30.48 | 35.56 | 40.64 | 45.72 | 50.80 | 55.88 | 60.96 | 66.04 | 71.12 | 76.20 | 81.28 | 86.36 | 91.44 | 96.52 | ~ | |
B±0.5 | 5.08 | 10.16 | 15.24 | 20.32 | 25.40 | 30.48 | 35.56 | 40.64 | 45.72 | 50.80 | 55.88 | 60.96 | 66.04 | 71.12 | 76.20 | 81.28 | 86.36 | 91.44 | ~
|
|
|
|
|
|
|
|
|
|
