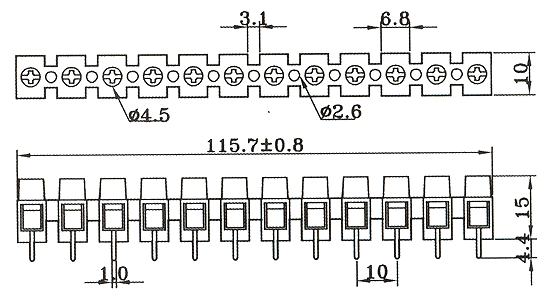

Mini Type
( Pitch:10mm )
|
BI-10KIT (MOQ 문의)
(생산량 문제로인하여 MOQ 문의)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
■ SPECIFICATIONS
|
|
|
Component part
|
Material
|
Standard
|
Plated
|
Remark
|
|
Base
|
Nylon-66
|
UL94V-0
|
|
Natural(백색으로보임)
|
|
Terminal
|
Brass
|
1/2H
|
TIN
|
0.7t×1.0
|
|
Wire protector
|
Stainless steel
|
SUS304
|
|
0.15t
|
|
Screw
|
Steel
|
|
Nickel
|
M3
|
|
|
|
|
Current rating
|
250V 10Amp
|
|
Insulation resistance
|
500M Ohms of More at DC500V
|
|
Withstand voltage
|
AC 2000V / Minute
|
|
Wire range
|
AWG #16~ #24
|
|
Torque
|
5.0 lb-in
|
|
|
|
|
|
|
|
|
|
|
|
|
|
PCB Terminal blocks
