Mini Type
( Pitch:5.0mm )
|
BI-500GS-DG128
(2P,3P Assemble) (Maker: DEGSON)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
■ SPECIFICATIONS
|
|
|
Component part
|
Material
|
Standard
|
Plated
|
Remark
|
|
Base
|
Nylon-66
|
|
|
Green
|
|
Terminal
|
Brass
|
|
TIN
|
0.8t×1.0
|
|
Body terminal
|
Brass
|
|
Nickel
|
0.7t
|
|
Screw
|
Steel
|
|
Zn
|
M2.5
|
|
|
|
|
Current rating
|
250V 10Amp
|
|
Insulation resistance
|
500M Ohms of More at DC500V
|
|
Withstand voltage
|
AC 1000V / Minute
|
|
Wire range
|
AWG #18 ~ #24
|
|
Torque
|
3.5lb-in
|
|
|
|
|
|
|
|
|
|

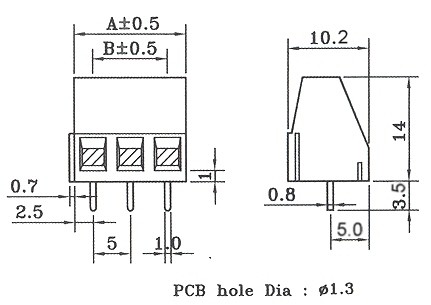

■ DIMENSION
|
|
P | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | ~ | |
A±0.5 | 10.0 | 15.0 | 20.0 | 25.0 | 30.0 | 35.0 | 40.0 | 45.0 | 50.0 | 55.0 | 60.0 | 65.0 | 70.0 | 75.0 | 80.0 | 85.0 | 90.0 | 95.0 | ~ | |
B±0.5 | 5.0 | 10.0 | 15.0 | 20.0 | 25.0 | 30.0 | 35.0 | 40.0 | 45.0 | 50.0 | 55.0 | 60.0 | 65.0 | 70.0 | 75.0 | 80.0 | 85.0 | 90.0 | ~
|
|
|
|
|
|
|
|
|
|
