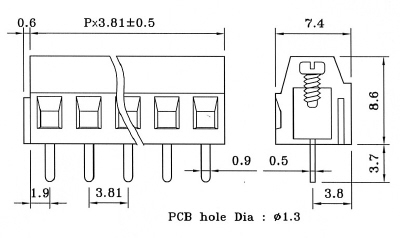

Mini Type
( Pitch:3.81mm )
|
BI-381GS-DG381
(2P,3P Assemble) (Maker: DEGSON)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
■ SPECIFICATIONS
|
|
|
Component part
|
Material
|
Standard
|
Plated
|
Remark
|
|
Base
|
Nylon-66
|
|
|
Green
|
|
Terminal
|
Brass
|
|
TIN
|
0.5t×0.9
|
|
Body terminal
|
Brass
|
|
Nickel
|
|
|
Screw
|
Steel
|
|
Zinc
|
M2
|
|
|
|
|
Current rating
|
250V 6Amp
|
|
Insulation resistance
|
500M Ohms of More at DC500V
|
|
Withstand voltage
|
AC 1000V / Minute
|
|
Wire range
|
AWG #18 ~ #24
|
|
Torque
|
1.8 lb-in
|
|
|
|
|
|
|
|
|
|
|
|
|
|
PCB Terminal blocks
