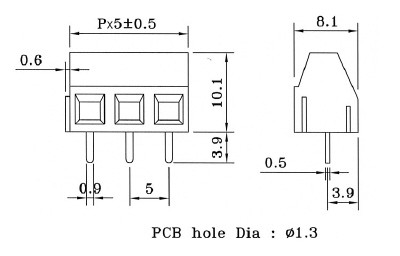

Mini Type ( Pitch:5.0mm )
BI-500GB-DG127 (2P, 3P Assemble) (Maker: DEGSON)
■ SPECIFICATIONS
Component part
Material
Standard
Plated
Remark
Base
Nylon-66
Green
Terminal
Brass
TIN
Body terminal
Screw
Steel
Zn
M2.5
Current rating
250V 6Amp
Insulation resistance
500M Ohms of More at DC500V
Withstand voltage
AC 1000V / Minute
Wire range
AWG #18 ~ #26
Torque
3.5 lb-in
