762 C-B series
( Pitch:7.62mm )
|
BI-762C-B2D
▶생산가능 pin수 문의요망◀
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
■ SPECIFICATIONS
|
( ):Options
|
|
Component part
|
Material
|
Standard
|
Plated
|
Remark
|
|
Base
|
PBT
|
UL94V-0
|
|
Black
|
|
Terminal
|
Brass
|
1/2H
|
TIN
|
0.8t
|
|
Screw
|
Steel(Brass)
|
|
Nickel
|
M3
|
|
|
|
|
Current rating
|
250V 10Amp
|
|
Insulation resistance
|
500M Ohms of More at DC500V
|
|
Withstand voltage
|
AC 2000V / Minute
|
|
Wire range
|
AWG #18 ~ #26
|
|
Torque
|
5.2 lb-in
|
|
|
|
|
|
|
|
|
|

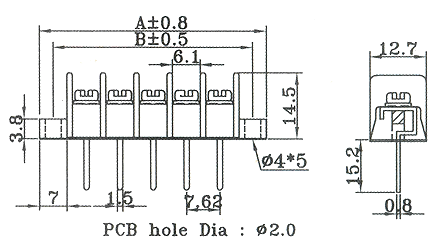

■ DIMENSION
|
|
P | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | |
A±0.8 | 30.36 | 37.98 | 45.60 | 53.22 | 60.48 | 68.46 | 76.08 | 83.70 | 91.32 | 98.94 | 106.56 | 114.18 | 121.80 | |
B±0.5 | 22.86 | 30.48 | 38.10 | 45.72 | 53.34 | 60.96 | 68.58 | 76.20 | 83.82 | 91.44 | 99.06 | 106.68 | 114.30
|
|
|
|
|
|
|
|
|
|
|
|
