762 C series
( Pitch:7.62mm )
|
BI-762C-1SW
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
■ SPECIFICATIONS
|
( ):Options
|
|
Component part
|
Material
|
Standard
|
Plated
|
Remark
|
|
Base
|
PBT
|
UL94V-0
|
|
Black
|
|
Terminal
|
Brass
|
1/2H
|
TIN
|
0.8t×1
|
|
Screw
|
Steel
|
|
Nickel
|
M3
|
|
|
|
|
Current rating
|
250V 10Amp
|
|
Insulation resistance
|
500M Ohms of More at DC500V
|
|
Withstand voltage
|
AC 2000V / Minute
|
|
Wire range
|
AWG #16 ~ #22
|
|
Torque
|
5.2 lb-in
|
|
|
|
|
|
|
|
|
|

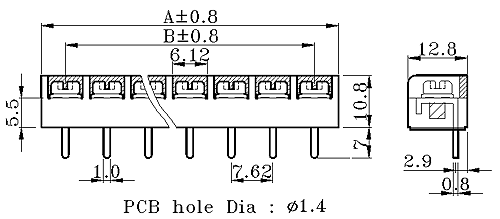

■ DIMENSION
|
|
P | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 ~ 23 | 24 | 25 | 26 | 27 | 28 | |
A±0.8 | 16.82 | 24.44 | 32.06 | 39.68 | 47.3 | 54.92 | 62.54 | 70.16 | PINx7.62+1.58 | 184.46 | 192.08 | 199.7 | 207.32 | 214.94 | |
B±0.8 | 7.62 | 15.24 | 22.86 | 30.48 | 38.1 | 45.72 | 53.34 | 60.96 | (PIN-1)x7.62 | 175.26 | 182.88 | 190.5 | 198.12 | 205.74
|
|
|
|
|
|
|
|
|
|
|
|
