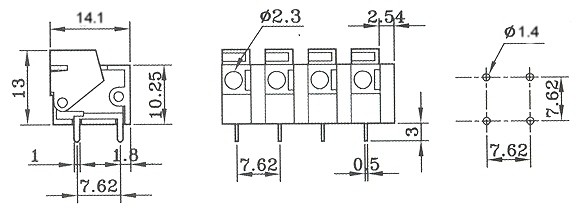

Screwless Type ( Pitch:7.62mm (▶MOQ 10,000pin) )
BI-7676L-DG142R (Maker: DEGSON) MOQ 10,000pin
■ SPECIFICATIONS
Component part
Material
Standard
Plated
Remark
Base
Nylon-66
Terminal
Brass
TIN
Wire guard
Stainless steel
Current rating
300V 10A
Insulation resistance
500M Ohms of More at DC500V
Withstand voltage
AC1000V / Minute
Wire range
AWG #16 ~ #22
핀수입력(핀수 필요없는 제품은 0 입력)pin
수량입력개
