Power Terminal block
( (생산여부확인요망) )
|
BI-CTBL-*P(16PTHC로 대체 검토요망)
(생산여부확인요망) MOQ: 10EA
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
■ SPECIFICATIONS
|
|
|
Component part
|
Material
|
Standard
|
Plated
|
Remark
|
|
Base
|
BlackBakelite
|
|
|
Black
|
|
|
|
|
Operation temp
|
-30˚C ~ +200˚C
|
|
Current rating
|
250V 10~50Amp
|
|
Wire range
|
AWG 10∼12
|
|
|
|
|
|
|
|
|
|

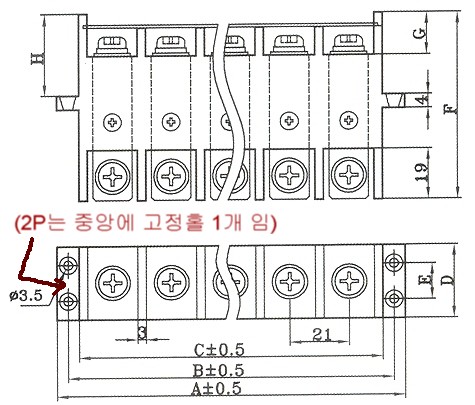

■ DIMENSION
|
|
Model NO. | A | B | C | D | E | F | G | H | |
BI-CTBL-2P | 61 | 53 | 45 | 22.5 | 13 | 70 | 14.5 | 34 | |
BI-CTBL-3P | 82 | 74 | 66 | 26 | 13 | 68 | 14.5 | 30 | |
BI-CTBL-4P | 103 | 96 | 87 | 26 | 13 | 68 | 12.4 | 29 | |
BI-CTBL-5P | 124 | 116 | 108 | 26 | 13 | 68 | 14.5 | 30
|
|
|
|
|
|
|
|
|
|
