Power Terminal block
( (»ý»ê¿©ºÎÈ®Àοä¸Á) )
|
BI-CTBS-*P(12PTHC·Î ´ëü °ËÅä¿ä¸Á)
(»ý»ê¿©ºÎÈ®Àοä¸Á) MOQ: 10EA
|
|
|
|
|
|
|
|
¡á SPECIFICATIONS
|
|
Component part
|
Material
|
Standard
|
Plated
|
Remark
|
Base
|
BlackBakelite
|
|
|
Black
|
|
|
Operation temp
|
-30¢ªC ~ +200¢ªC
|
Current rating
|
250V 30Amp
|
Wire range
|
AWG 12~14
|
Torque
|
0.75 N.M
|
|
|
|
|
|

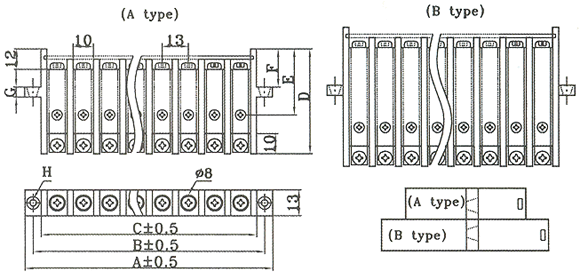

¡á DIMENSION
|
Model NO. | A | B | C | D | E | F | G | H | |
BI-CTBS-2P(A) | 45 | 37 | 29 | 46 | 30 | 19 | 4.5 | 3.5 | |
BI-CTBS-3P (A|B) | 58 | 50 | 42 | 46|66 | 30|46 | 19|27 | 4.5 | 3.5 | |
BI-CTBS-4P (A|B) | 71 | 63.1 | 55.3 | 46|66 | 30|46 | 19|27 | 4.5 | 4 | |
BI-CTBS-6P (A|B) | 97 | 89 | 81 | 46|66 | 30|46 | 19|27 | 4 | 3.5 | |
BI-CTBS-8P (A|B) | 123 | 115 | 107 | 46|66 | 30|47.5 | 19|27 | 4 | 3.5 | |
BI-CTBS-9P (A|B) | 136 | 128 | 120 | 47|68 | 30|46 | 20|29 | 4 | 3.0 | |
|
|
|
|
|
|
|
